A wheel size chart is a practical starting point for choosing replacement tires or aftermarket rims, but it cannot confirm fitment by diameter alone. A safe match requires the tire’s approved rim-width range, the wheel’s diameter and width, bolt pattern, offset, center bore, and load rating to work with your specific vehicle. The tire placard on the driver’s door jamb and the owner’s manual remain the baseline for original equipment sizing. Use a wheel size chart to compare options, then verify the final wheel-and-tire package with the wheel maker, tire maker, or a qualified installer before buying.
Most wheel size charts combine two related but different sets of measurements: tire sizing and wheel sizing. The tire determines what rim diameter and width can be used. The wheel determines whether it can mount to the vehicle correctly and clear suspension, brakes, and bodywork.
For example, consider a tire marked 225/45R17 94W. Its basic meaning is:
| Marking | Meaning | Why it matters for fitment |
|---|---|---|
| 225 | Nominal section width in millimeters | Wider tires can reduce clearance to struts, liners, fenders, or suspension components. |
| 45 | Aspect ratio; sidewall height is 45% of section width | A lower profile reduces sidewall height and can change ride quality and wheel damage risk. |
| R | Radial construction | Standard construction designation on most passenger-vehicle tires. |
| 17 | Required rim diameter in inches | The tire fits only a 17-inch-diameter wheel. |
| 94 | Load index | Replacement tires must meet the vehicle’s required load capacity. |
| W | Speed symbol | Use a tire that meets the vehicle manufacturer’s requirements and intended use. |

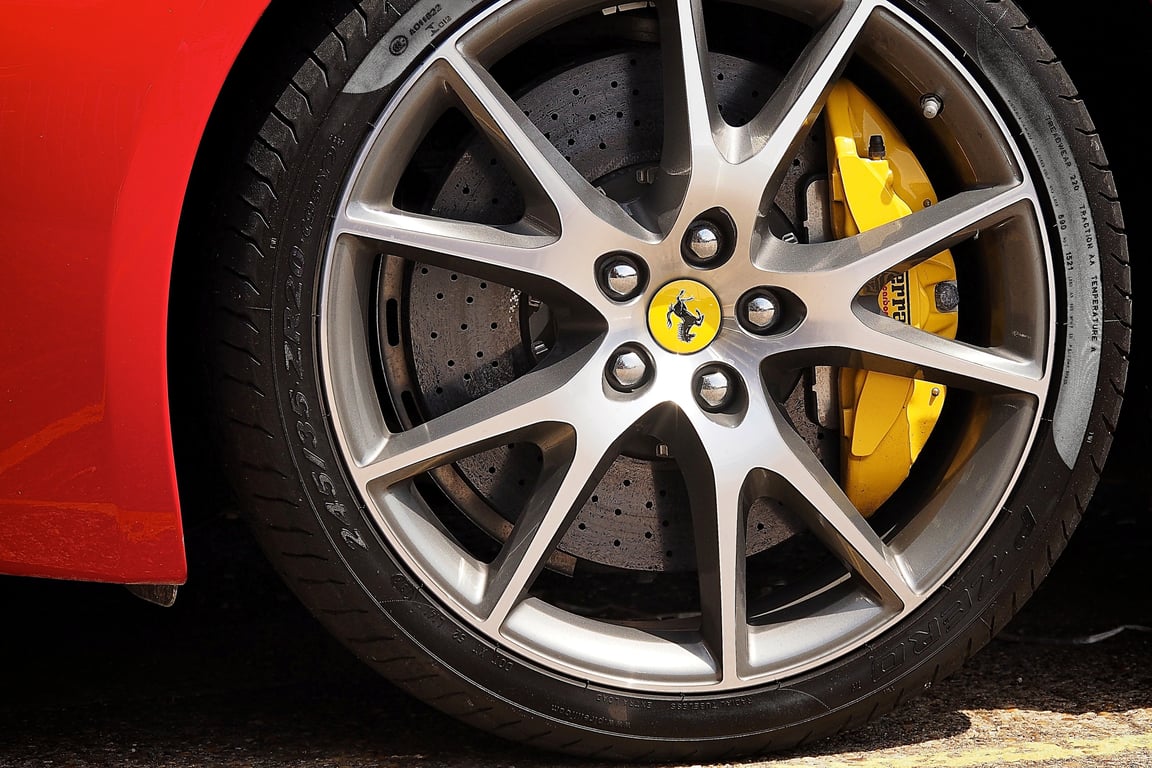

A wheel might be marked 17x7.5J 5x114.3 ET45. The 17 is the rim diameter, 7.5 is its width in inches, 5x114.3 is the bolt pattern, and ET45 is a 45 mm positive offset. The letter J identifies a common passenger-car rim flange profile, but it does not tell you whether the wheel fits your vehicle.
Drivers often use a wheel size chart when moving to a larger-diameter wheel. This is commonly called plus-sizing. The goal is usually to retain a similar overall tire diameter by using a lower-profile tire as rim diameter increases. That approach can preserve gearing and instrument accuracy more closely, but it does not guarantee adequate clearance or load capacity.
The following examples show the calculation principle, not universal replacement recommendations. Approved tire widths, wheel widths, offsets, and vehicle clearances vary by make, model, trim, brake package, and suspension condition.
| Example tire size | Required rim diameter | Approximate sidewall height | Approximate overall diameter | Fitment note |
|---|---|---|---|---|
| 205/55R16 | 16 inches | 112.8 mm | 24.9 inches | Illustrates a moderate sidewall on a 16-inch wheel. |
| 225/45R17 | 17 inches | 101.3 mm | 25.0 inches | Similar overall diameter in this example, with a wider tread section and shorter sidewall. |
| 235/40R18 | 18 inches | 94.0 mm | 25.4 inches | Larger overall diameter than the first example; verify clearance and calibration effects. |
To estimate tire diameter, multiply the section width by the aspect ratio, convert that sidewall height from millimeters to inches, multiply by two, then add the wheel diameter. The formula is useful for screening choices, but measured tire dimensions can differ slightly among tire models even when the sidewall size is the same.
A common buying mistake is to see that a tire fits a 17-inch wheel and assume it will fit any 17-inch wheel. It will not. Every tire size has an approved rim-width range established by the tire manufacturer. Mounting a tire on a rim that is too narrow or too wide can alter its tread shape, sidewall support, handling response, and wear pattern.
A tire’s nominal width is not a direct wheel-width recommendation. A 225 mm tire, for example, may be approved for more than one rim width, depending on its construction and intended use. Consult the specification sheet for the exact tire model rather than relying on a generic tire-width conversion chart.
| Wheel-width situation | Likely effect | What to do |
|---|---|---|
| Too narrow for the tire | Sidewalls may pinch inward and the tread may not sit as intended. | Choose a narrower tire or a wheel within the manufacturer-approved range. |
| Within the tire’s approved range | Tire profile and response should remain within the maker’s intended operating range. | Check the listed measuring rim and approved range for the exact tire. |
| Too wide for the tire | Sidewalls may stretch outward, reducing protection for the wheel lip and changing tire behavior. | Select a wider tire or a narrower wheel. |
The measuring rim listed in a tire specification is especially useful for comparing published width and diameter. It is the wheel width used when the manufacturer measured that tire. It is not necessarily the only acceptable wheel width, but it gives context to the published dimensions.
Correct tire dimensions do not make an incorrect wheel safe. The wheel must mount squarely to the hub and be secured with the correct hardware. Bolt pattern, offset, center bore, seat type, and thread engagement are separate fitment checks that a basic tire-size calculator may not cover.

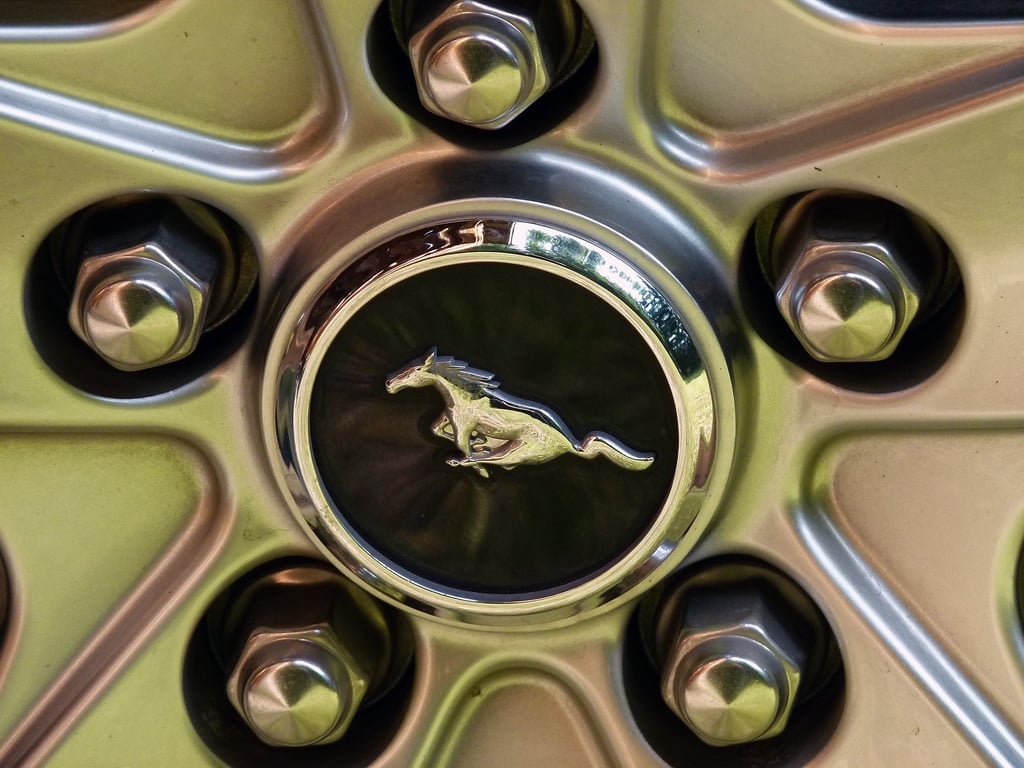

A bolt pattern is written as the number of studs or bolts followed by the bolt-circle diameter. For instance, 5x114.3 means five mounting points arranged on a 114.3 mm circle. A wheel must match the vehicle’s bolt pattern exactly. Similar-looking patterns are not interchangeable.
Offset is the distance between the wheel centerline and the hub-mounting surface. Positive offset places the mounting surface toward the outside face of the wheel, moving more of the wheel inward. Lower positive offset or negative offset moves the wheel outward.
A wheel that sits too far inward can contact the strut, control arm, or brake components. A wheel that sits too far outward can contact the fender or liner during turns and suspension compression, while also changing steering geometry and bearing loads. Backspacing is another wheel-position measurement that combines width and offset; use the specification system supplied by the wheel maker, and do not assume two wheels with the same diameter and width will sit in the same place.
The center bore is the hole at the center of the wheel. On vehicles designed for hub-centric mounting, the wheel should be properly centered on the hub. If an aftermarket wheel has a larger center bore, properly sized hub-centric rings may be specified by the wheel supplier. Never try to make a wheel fit by forcing it onto the hub or modifying mounting surfaces without qualified guidance.
Also confirm that the lug nuts or bolts match the wheel’s required seat type, such as conical or ball seat, and that they have the correct thread and engagement. Reusing original hardware is not automatically safe with an aftermarket wheel.
| Priority | Generally suitable approach | Main advantage | Important limitation to verify |
|---|---|---|---|
| Everyday replacement | Original wheel diameter and placard-size tire | Lowest fitment risk and simple replacement process | Confirm the exact tire meets required load, speed, and seasonal needs. |
| Comfort and pothole resistance | Approved smaller-diameter wheel with a taller-sidewall tire | More sidewall can provide additional impact protection | Brake clearance and approved wheel diameter must be confirmed. |
| Appearance or sharper steering feel | Approved larger wheel with a lower-profile tire | Can change appearance and reduce sidewall flex | Ride firmness, wheel damage risk, offset, and clearance require close attention. |
| Winter driving | Vehicle-approved wheel and winter-tire package | Allows use of tires selected for cold-weather conditions | Confirm clearances, load ratings, and any front-to-rear fitment requirements. |
| Hauling or heavy passenger loads | Original-equipment-equivalent or vehicle-approved heavy-duty setup | Supports the vehicle’s required capacity when correctly specified | Do not rely on appearance; check tire and wheel ratings directly. |
For most drivers, staying with the original wheel diameter and a placard-approved tire size is the simplest choice. A larger wheel can make sense for a driver who accepts the trade-off in ride quality and damage risk, but only after the exact tire-and-wheel combination has been checked for fitment. For towing, cargo, or frequent full-passenger use, capacity ratings deserve more attention than styling.
No. The tire must match the wheel diameter and fall within the tire manufacturer’s approved rim-width range. It must also provide adequate clearance and meet the vehicle’s load and speed requirements.
There is no universal allowance that applies safely to every vehicle. Small changes may still affect clearance or vehicle-system behavior, while some vehicles have very little room around the tire. Compare the proposed tire’s published dimensions with the original and confirm vehicle-specific compatibility before installation.
Not always, but the wheel width must be approved for the tire size selected. A wider wheel may support a wider tire, yet the correct choice depends on the tire’s approved range, offset, available clearance, and the vehicle’s intended use.
Yes. Offset changes the wheel’s position relative to suspension components and the fender. Even a tire size that is close to stock can rub if the wheel’s offset or width moves it too far inward or outward.
Possibly. Aftermarket wheels can require a different seat shape, length, or hardware style than the original wheels. Use the hardware specified for the wheel and vehicle, and follow the vehicle manufacturer’s torque specification.
Most vehicles are designed for four matching tire sizes, except where the manufacturer specifies a staggered setup. Matching is especially important on many all-wheel-drive and four-wheel-drive vehicles, where differences in rolling circumference can affect the driveline.
A wheel size chart helps narrow down tire and rim combinations, but safe fitment depends on the complete package. Match tire diameter to rim diameter, confirm rim width against the tire maker’s specification, then verify bolt pattern, offset, center bore, load ratings, hardware, and real-world clearance. Before purchasing, compare the proposed setup with your vehicle placard, owner’s manual, and the specifications supplied for the exact tire and wheel you plan to use.
